3HP Duplex 230v 1ph DEP Lift Station Control Panel < 18FLA

3hp 230v 1phase Duplex lift station control panel DEP approved

Model: CPCD-MG200

Stock item - Ships in 1-2 business days

Voltage: 230v
Phase: 1Ø
Full Load Amps: 18A
Largest HP: 3HP
Enclosure type: NEMA 3r

Works with Liberty LSG, Myers VRS20's, and most other internal capacitor pumps up to 3hp.

Ships UPS Ground

DEP pump control panels are designed to make managing duplex pump stations simple and reliable. Built for systems with two submersible pumps, these panels help ensure smooth operation and peace of mind.

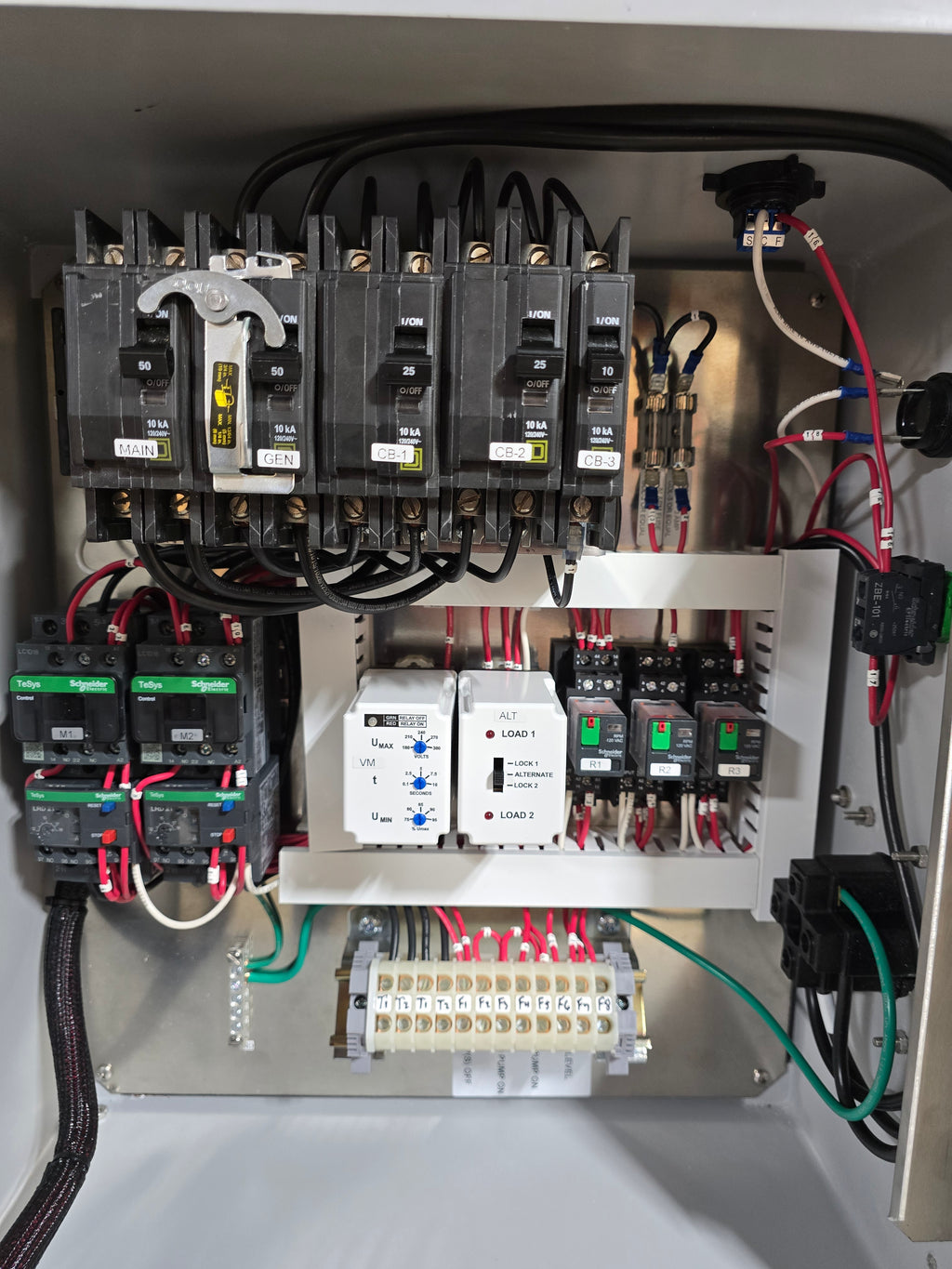

Each panel comes equipped with dedicated circuit breakers for both pumps, a high-water alarm to alert you of potential issues, generator receptacle and protective fuses for the alarm system. An automatic alternating relay is also included, which rotates pump operation each cycle—helping to balance wear and extend the life of your equipment.

With these features working together, DEP pump control panels provide dependable performance and easier system management.
