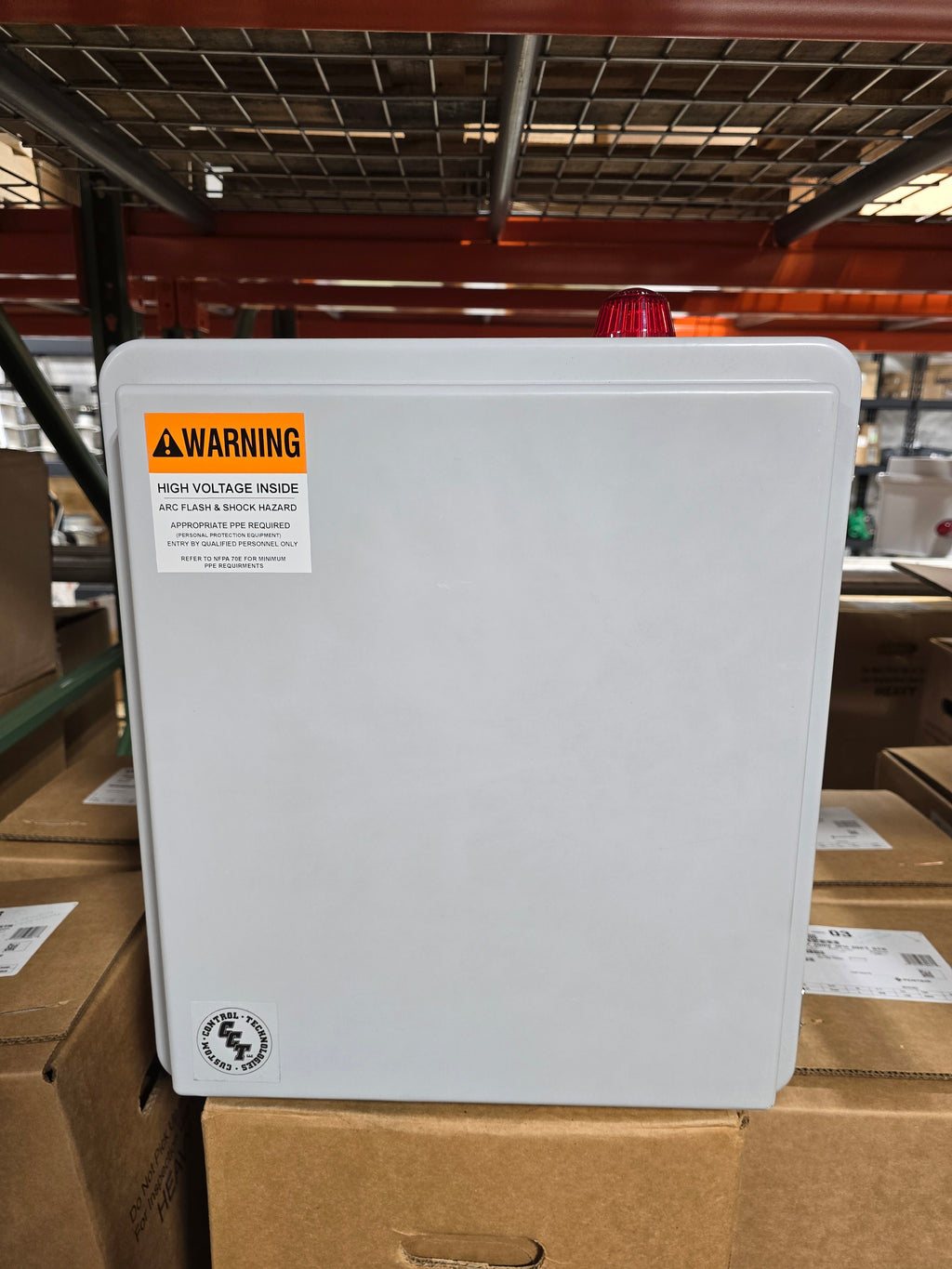

2HP Duplex 208v/230v 1ph DEP Lift Station Control Panel 12-18FLA

Model: CPCD-VSERIES

Stock item - Ships in 1-2 business days

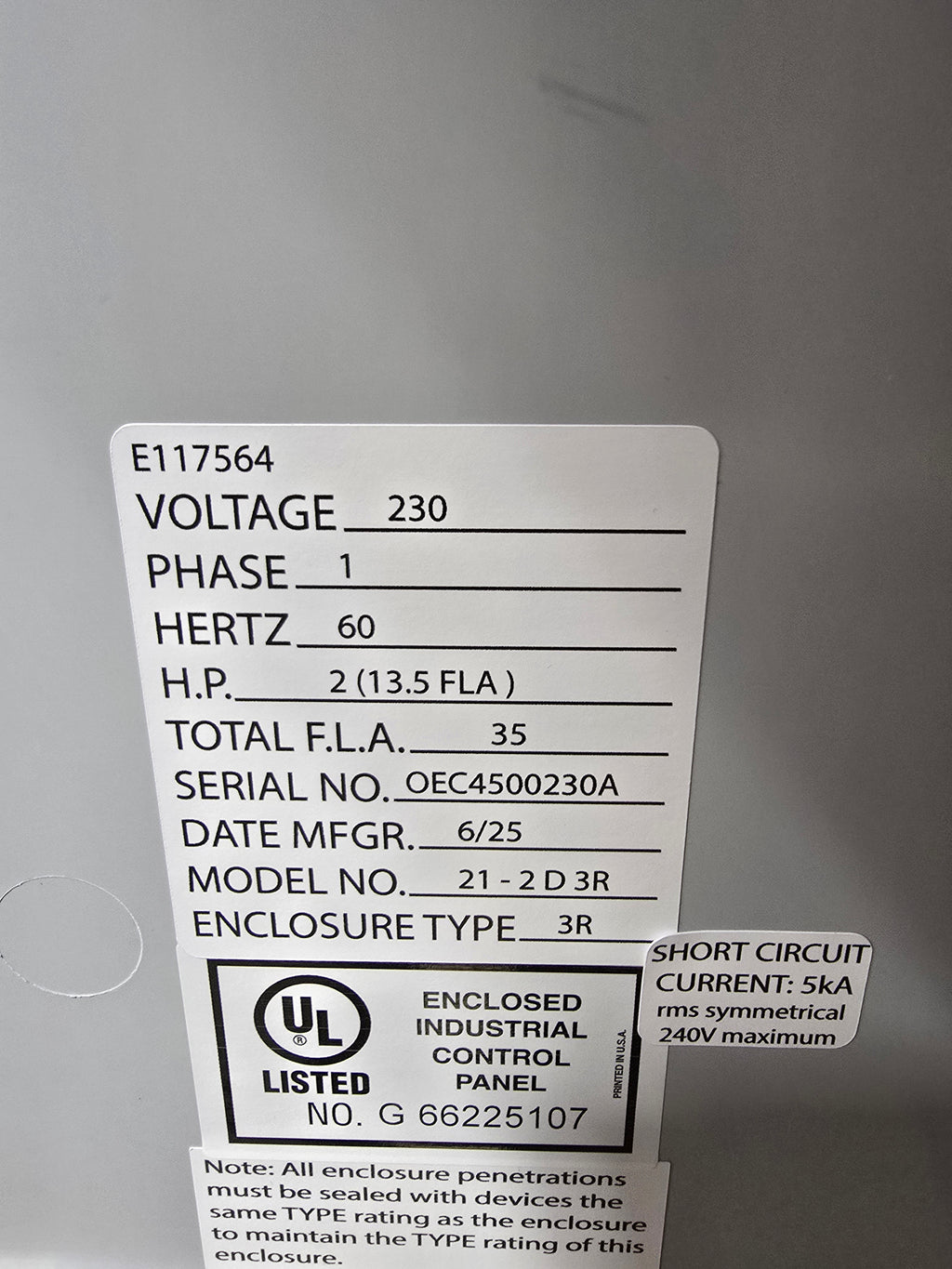

Voltage: 208/230v
Phase: 1Ø
Full Load Amps: 12-18A
Largest HP: 2HP
Enclosure type: NEMA 3r

Suitable for 2hp grinder pumps, 208/230v, 1Ø, 12-18FLA. Capacitors are provided for Myers pumps. Other pumps requiring different start / run capacitors would have to be replaced by end user.

Ships via Freight

DEP pump control panels are designed to make managing duplex pump stations simple and reliable. Built for systems with two submersible pumps, these panels help ensure smooth operation and peace of mind.

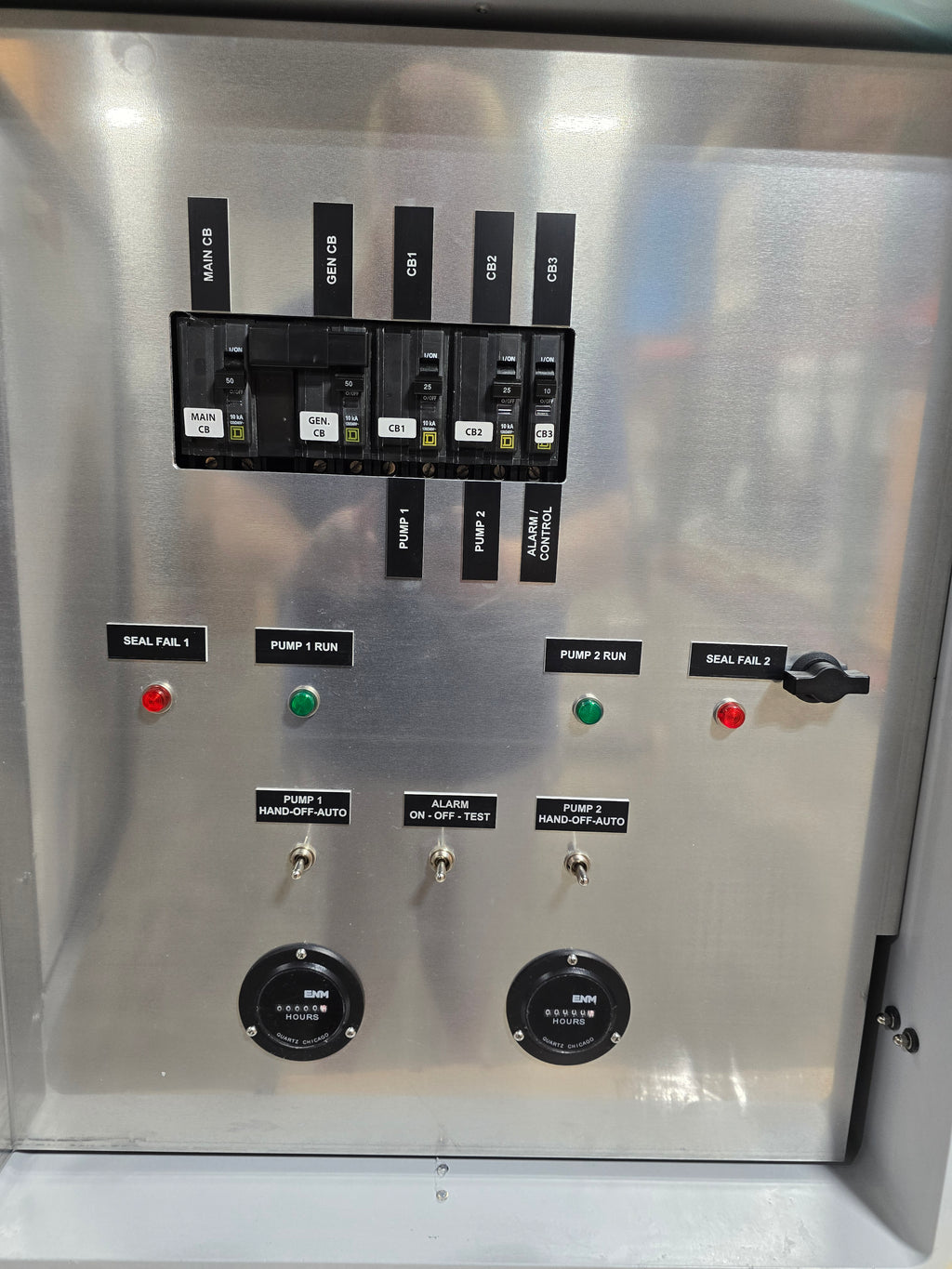

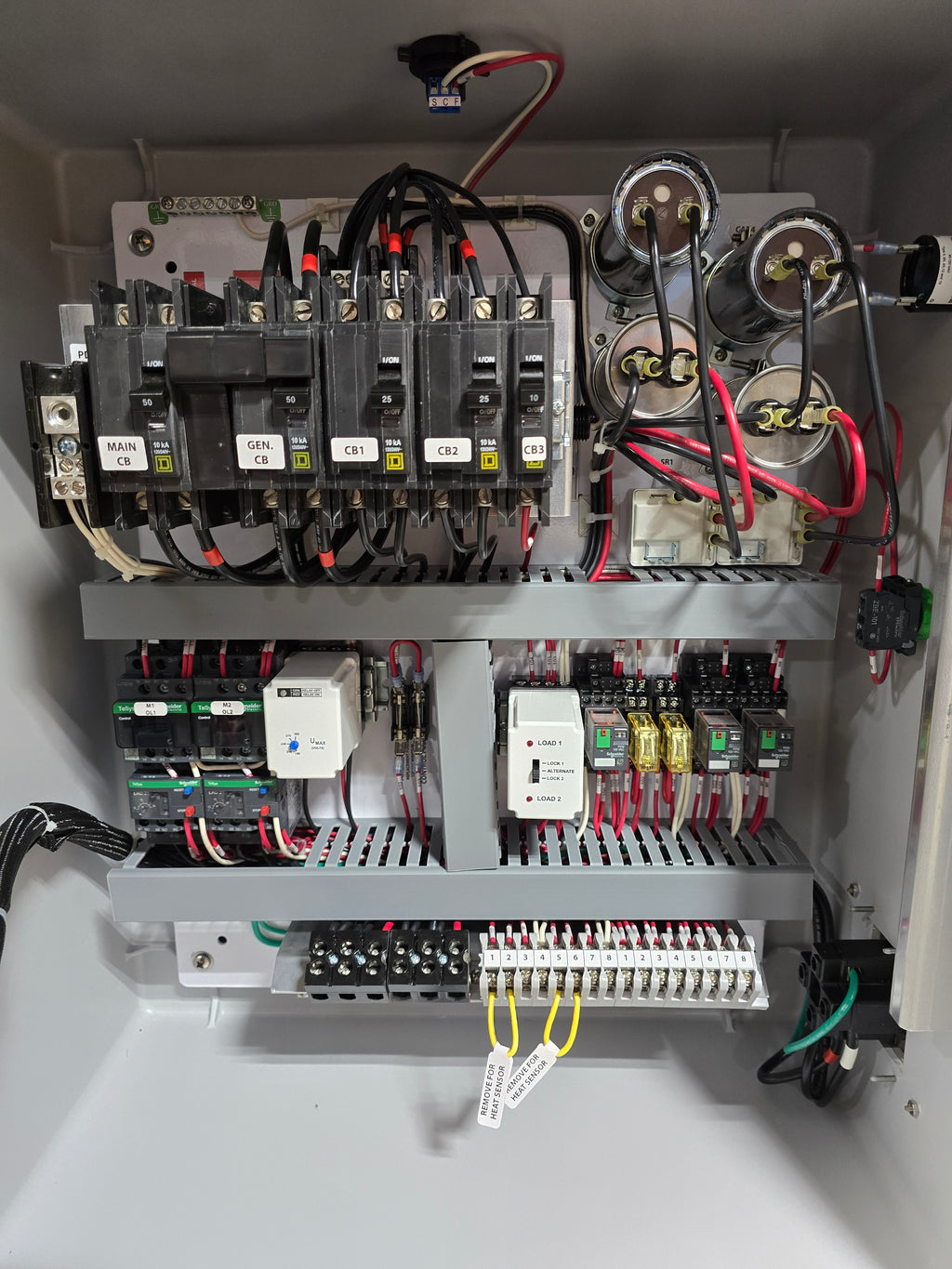

Each panel comes equipped with dedicated circuit breakers for both pumps, a high-water alarm to alert you of potential issues, generator receptacle and protective fuses for the alarm system. An automatic alternating relay is also included, which rotates pump operation each cycle—helping to balance wear and extend the life of your equipment.

With these features working together, DEP pump control panels provide dependable performance and easier system management.
